Configurable CO2 laser and scan head sub-system simplifies integration
New configurable laser processing packages from Novanta help OEMs and system integrators get their machines and in-line laser processing systems up and running faster and easier. Save precious integration time and resources with proven, robust laser processing sub-system packages utilizing industry leading components from a single source.
Overview

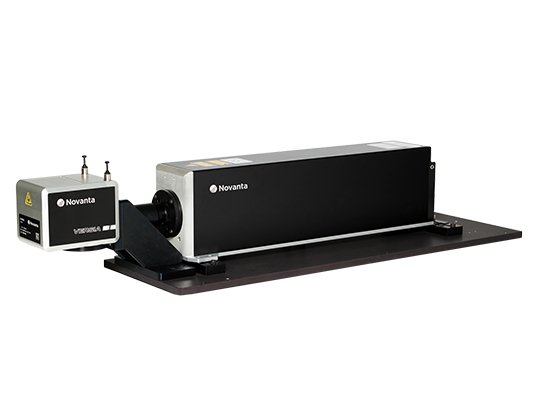

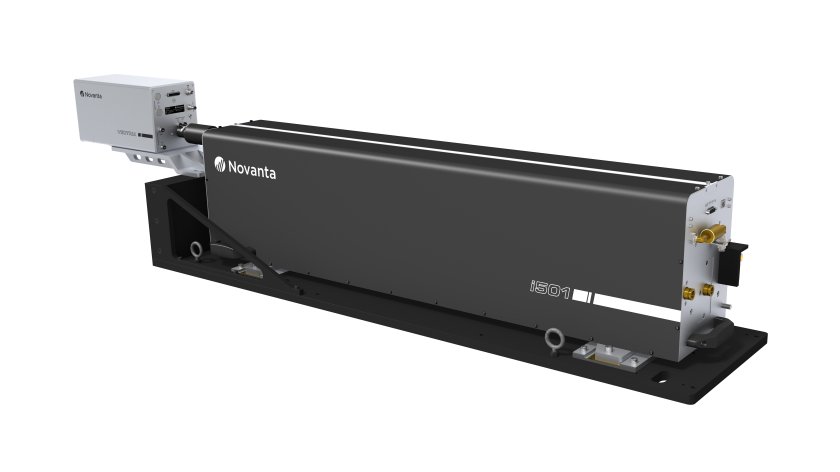

The new, configurable laser processing Integrator Packages help original equipment manufacturers (OEMs) and system integrators get their machines and in-line laser processing systems up and running faster and easier. The complete, factory pre-aligned and calibrated sub-system includes a CO2 laser source, scan head, controller, software, beam expander, connector cables, and mounting hardware, all from a single source.
For OEMs and system integrators, the integrator packages save precious time and resources typically associated with integrating individual components provided by separate suppliers. Difficulties associated with sourcing, designing, aligning, and supporting individual components for CO2 laser processing systems are resolved with Novanta laser processing Integrator Packages. Additionally, the Integrator Package is enhanced with Novanta ScanMaster™ Controller (SMC) and ScanMaster™ Designer (SMD), the industry leading laser controller and software package.
Specifications
| Integrator Package | |
|---|---|
| Number of Axes | 5 axes: X – Y – Z coordinates + two beam inclination angles |
| Wavelength |
1020 – 1080 nm (NIR) 515 – 540 nm (VIS) |
| Focal Length of Objective Lens | 60 mm |
| Precision Frequency | 300 – 650 Hz (18000 – 39000 rpm) |
| Maximum Pulse Energy / Shortest Pulse Length |
IR: 500 µJ @ 250 fs VIS: 250 µJ @ 250 fs |
| Cooling | Water |
| Purge Gas (Head / Lens) | Nitrogen / Any |
| Polarization (Input / Output) | Linear / Circular |
| Cameras – Alignment (2) | Industrial cameras with e2v 1.3 megapixel CMOS sensor |
| Camera – Visual | Progressive scan 4.92 megapixel, 4:3 aspect ratio |
| Family | Power (W) | Wavelength (µm) | Cooling |
|---|---|---|---|
| 48 Series | 8 – 10 | 9.3, 10.6 | Air, Water |
| v Series | 30 | 9.3, 10. 2, 10.6 | Air, Water, Fan |
| vi Series* | 30 | 9.3, 10. 2, 10.6 | Air, Water, Fan |
| ti Series | 60,80,100 | 9.3, 10. 2, 10.6 | Air, Water, Fan |
| f Series | 200 | 10.2, 10.6 | Water |
| i Series | 400 | 10.2, 10.6 | Water |
| p Series* |
100 – 150 average / 300 – 600 peak 250 average / 750 – 800 peak 400 average / 1000 peak |
9.3, 10. 2, 10.6 10.2, 10.6 10.6 |
Water Water Water |
| Scan Head | Working Distance 1 | Usable Square<br>Field Size<br>(mm2) | Typical Spot Size 2<br>(µm) | Typical Depth<br>of Field<br>(mm) |
|---|---|---|---|---|
| MOVIA | 100 | 65 x 65 | 240 | ± 3.5 |
| MOVIA | 200 | 130 x 130 | 485 | ± 14 |
| MOVIA | 300 | 195 x 195 | 730 | ± 32 |
| VERSIA | 100 | 67 x 67 | 175 | ± 1.75 |
| VERSIA | 200 | 135 x 135 | 350 | ± 7.5 |
| VERSIA | 300 | 205 x 205 | 525 | ± 16 |
2 – Spot Size diameters given for collimated gaussian beams with typical beam diameters and at M² = 1.2
