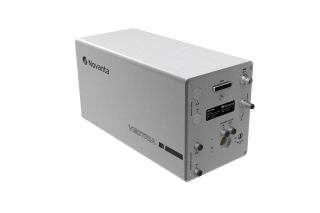

Vectria™ is a compact hybrid 3D scan head engineered for CO₂ laser cutting, engraving, drilling, and marking. Featuring CO₂‑optimized optics and integrated Z‑axis control, with advanced thermal management for demanding high-power CO₂ applications. It delivers higher speed, finer detail, and improved uptime for demanding industrial applications.
Overview
Vectria is a high‑performance motion control platform designed to help OEMs and machine builders achieve exceptional accuracy, repeatability, and system efficiency—without added complexity. Engineered for modern precision manufacturing, Vectria combines advanced control capabilities with a streamlined, scalable architecture that simplifies system design and accelerates time to market.
From concept through production, Vectria supports reliable, stable motion in space‑constrained and performance‑critical environments. Its flexible design enables faster integration, reduced engineering effort, and confidence‑inspiring operation across a wide range of automation applications.
Built for continuous operation in demanding industrial settings, Vectria helps teams improve output quality, protect uptime, and future‑proof their systems as requirements evolve.
Precision without compromise. Simplified by design. Built for what’s next.
| Aperture | 30 mm |
|---|---|
| Max. Laser Power | 500 W |
| Scan Angle (optical) | ± 22° |
| Entrance Beam Aperture1 | 9.5 mm |
| Tune Type2 | All Purpose Tune |
| Step Response Time 1% of Full Scale3 | < 650 µs |
| Step Response Time 10% of Full Scale3 | < 3450 µs |
| Positioning Speed (optical) | 26 rad/sec (9m/s @WD 350mm) |
| Max Acceleration (optical) | 132.000 rad/s² |
| Tracking Error | < 320 µs |
| Linearity | 99.5% |
| Non-Linearity | < 0.35 mrad/44° |
| Gain Error | < 5 mrad |
| Laser Wavelength |
CO2: 9.3, 10.2, 10.6 µm Fiber: 1.030 – 1.070 µm (on request) |
| Power Supply Requirement | 48 V DC / 5 A RMS |
| Servo-Technology | Hybrid-Digital Servo |
| Position Resolution |
NVL-100 / 20-bit XY2-100 / 16-bit |
| Water Cooling Housing | Recommended |
| Water Cooling Aperture | Mandatory |
| IP-Rating | IP61 |
| Stacking-Distance Beam Exit to Exit | 120 mm |
| Max. Dry Weight | 10 kg |
| Dimension (L x W x H) | 346.9 mm x 145 mm x 171.3 mm |
All angles are in optical degrees, unless otherwise noted. All specifications are subject to change without notice.
1. Optical path designed for incoming collimated gaussian laser beams of d = 9 mm (1/e²)
2. Further Tunes available to match customer specific requirements
3. Settling to within 1% of position
