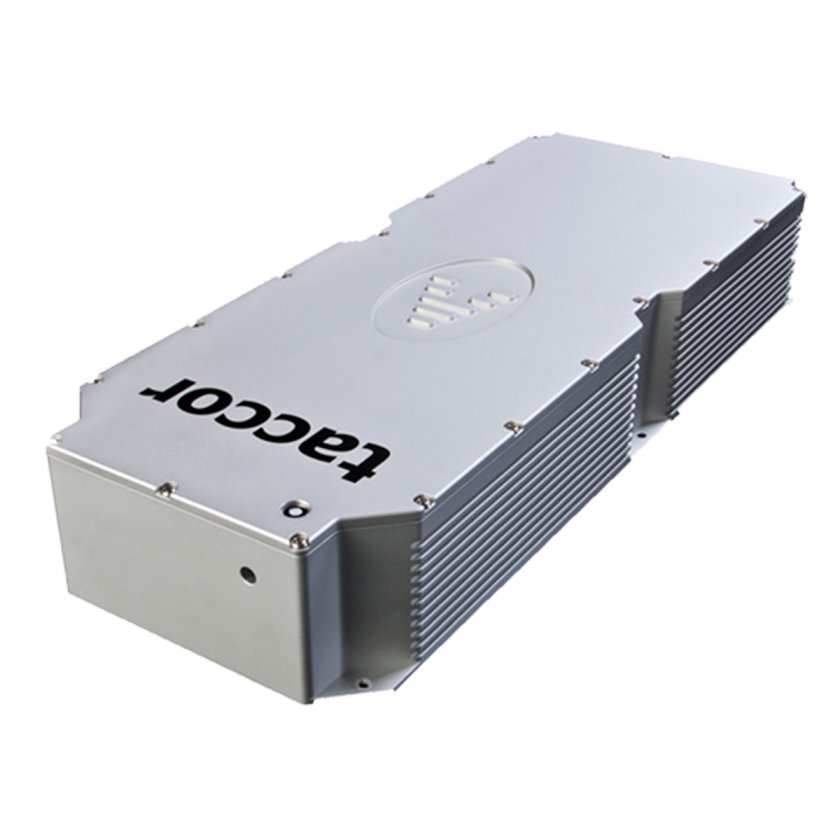

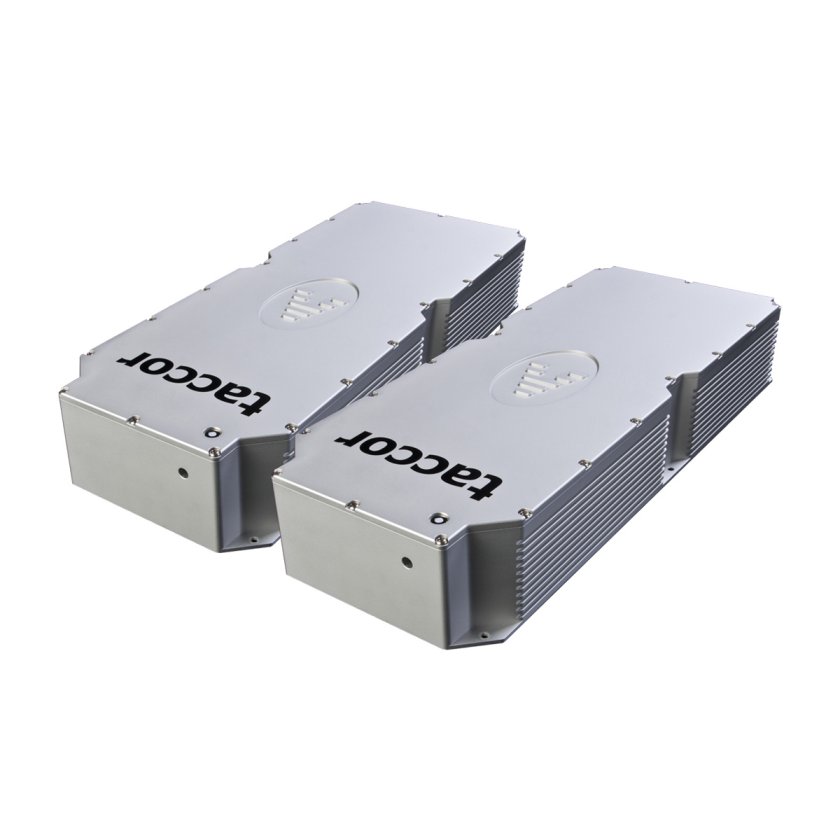

taccor – Ultrafast Femtosecond Lasers
Compact femtosecond laser optimized for stability and performance in demanding environments. Delivers consistent pulse characteristics for precision applications. Designed for easy integration into OEM systems. Supports reliable operation across research and production use.
Best for: OEM integration, research, precision processing
Key advantage: Stability
Compatibility: Scientific systems, beam delivery platforms
Overview
1 and 10 GHz femtosecond lasers with a compact mono-block design that greatly reduces maintenance needs. taccor Power The taccor power is designed and tuned to offer the highest power for the configuration, up to 1.8 W. taccor Tune A tuneable wavelength for applications where different wavelengths is required. Controlled via a simple touch-screen control (or software) to alter the output wavelength. taccor X10 A turn-key femtosecond laser with a 10 GHz repetition rate, delivering more than 1 W of average power in pulses as short as 50 fs.
Long, Contamination-Free Operation
- Remote connection capability – Internet connectivity for control, diagnosis and optimization.
- Hermetically sealed – Fully sealed cavity ensures long, contamination-free lifetimes.
- 3 year/9000 hour warranty – Full specification, industry-leading warranty.
Self-Starting & Maintaining
- Self-starting and maintaining – The laser starts electronically and constantly monitors its locking profile to ensure continued mode-locking performance.
- Repetition rate locking – Optional upgrade to allow repetition rate locking to external electronics.
- Highest power – The laser is optimized during its build to ensure the highest power is delivered.
- CEP upgrade – This laser can be build as either CEP stabilized or in preparation for future upgrades.
Minimal User Interaction
- Fit and forget user experience, minimal of user interaction is required.
- No installation required, only needs to be plugged not an electrical power supply.
Specifications
| Model | taccor Power | taccor Tune | taccor X10 |
|---|---|---|---|
| Average Power Output |
power 6 >1000 mW power 10 >1800 mW |
tune 10 > 1800 mW1 | >1000 mW |
| Centre Wavelength2 | nominal 800 nm (+/-20 nm) | 740 nm to 910 nm (tuneable)3 | nominal 830 nm (+/-30 nm) |
| Pulse Duration4 | <30 fs | <80 fs | <50 fs |
| Spectral FWHM | > 23 nm | -15 nm | > 15 nm |
| Repetition Rate7 | 1 GHz | 1 GHz | 10 GHz |
| Pulse Energy | 0.8 nJ to 1.8 nJ |
1.3 nJ – 1.8 nJ taccor tune 10 |
>100 pJ |
| Beam Size6 | 0.8 mm +/-0.3 mm | 0.8 mm +/-0.3 mm | 0.7mm +/-0.3 mm |
| Power Stability8 | <1% | <1% | <1% |
| Noise (RMS)5 | <0.05% | <0.05% | <0.05% |
| Polarization Ratio | > 100:1 | > 100:1 | > 100:1 |
| Polarization Direction | Horizontal | Horizontal | Horizontal |
| Operating Temperature | 21° C ± 5° C | 21° C ± 5° C | 21° C ± 5° C |
1: The value stated is for ~800nm and will vary across the tuning range.
2: Measured as the spectral centroid.
3: Choose between blue (740-880nm) and red (780-910nm) tuning range upon order.
4: Achieved using optional extra cavity dispersion compensation.
5: Noise bandwidth 1 Hz to 1MHz.
6: FWHM beam diameter at laser exit.
7: Repetition rate accuracy +/-100kHz (+/-25MHz for taccor x10). Other repetition rates available upon request.
8: Measured over 8 hours after cold start within operating temperature range.
