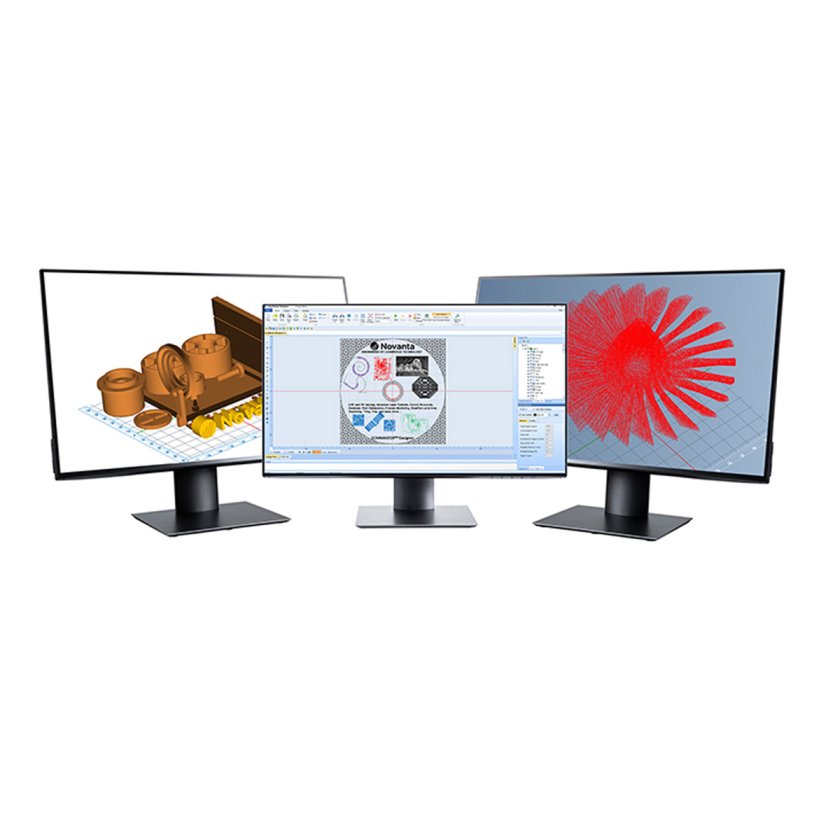

ScanMaster Designer

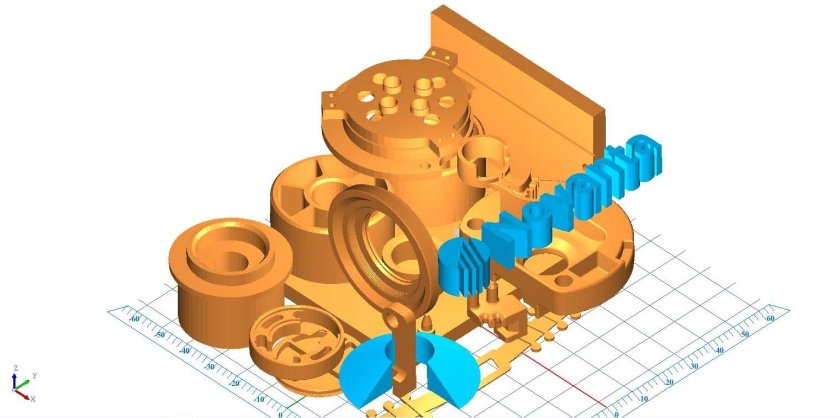

To enhance quality part production, the ScanMaster Controller & Designer features superior command resolution, trajectory planning, and predictive controls. Additive Manufacturing users can achieve:

• Precision and quality
• Throughput improvement
• System failure detection
• Process data archiving

Precision and ultra-fine levels of accuracy are critical advantages of laser scanning control in micromachining applications. Users that add ScanMaster to their laser scanning solution can achieve:

• Greater position accuracy in small areas
• Eliminates delays
• Multi-head processing
• Intuitive software features

Within Micromachining, Via-Hole Drilling is a process that requires extreme precision and accuracy to drill micro holes on sensitive materials. The ScanMaster features:

• Burst pulse mode
• Flexible drill shapes options
• On-the-fly drilling or roll-to-roll flex circuit options
• System failure detection

Excellent beam controls and spot size from 150x150mm to 1500x1500mm field size processing. The advanced controls including 16bit to 24bit command resolution enables higher throughput and 24×7 production. The ScanMaster features:

• Enabled 3-axis scan head operation
• Two MOTF and two RS232/485
• Tiling and tray
• Roll to roll integration and system failure detection

Support all 16bit interface scanhead to enable effortless integration. Quick, intuitive, and easy laser integration reduce system setup time. The ScanMaster features:

• Plug-and-play laser adaptor
• >15 million vector move buffer with more than 3.5GB on board memory for job storage
• Standalone operation and remote administration
• Tray and database to increase productivity
