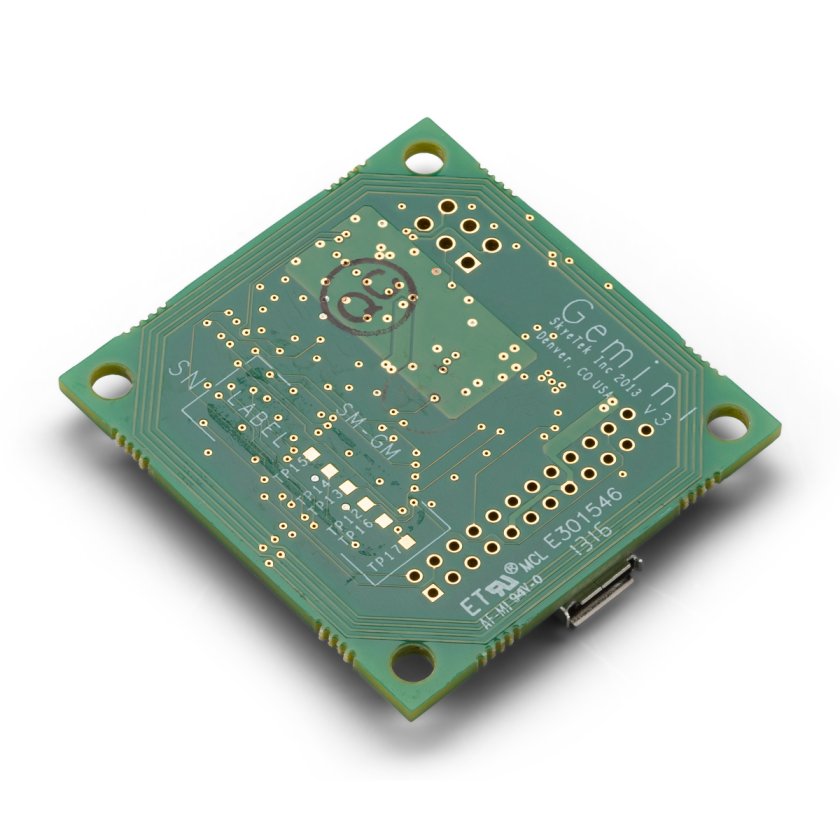

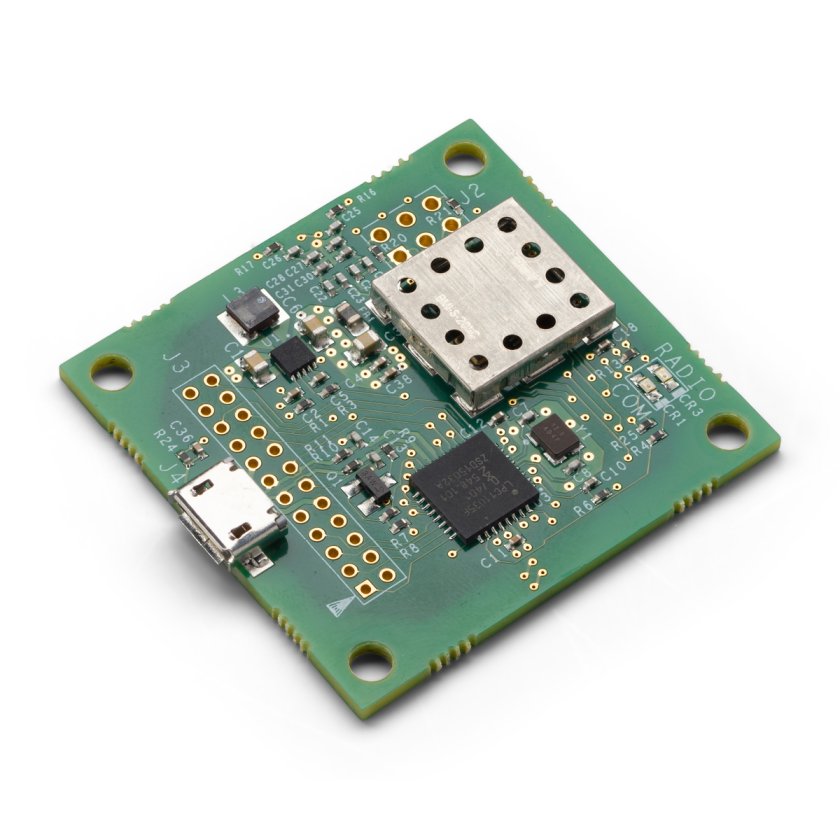

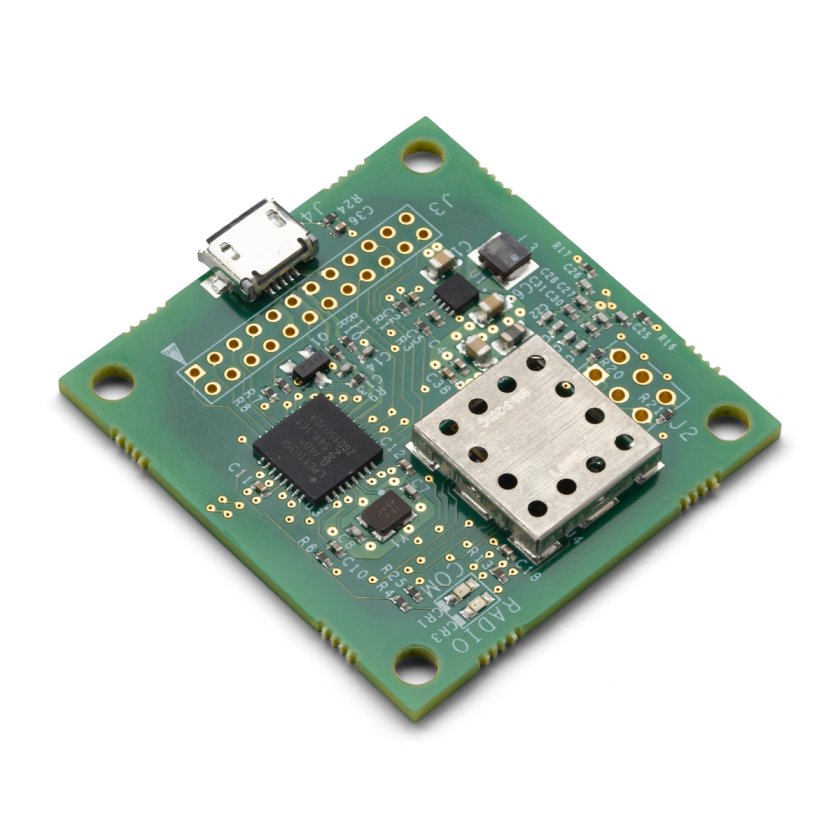

ThingMagic® Gemini HF Embedded RFID Module
ThingMagic® Gemini HF Embedded RFID Module
The ThingMagic® Gemini is for OEM designers requiring maximum customizability in an RFID module that reads and writes to MIFARE and NFC protocols, including capabilities for NFC peer-to-peer and NFC tag emulation (ISO 18092).
The Gemini supports the mutually authenticated Triple Data Encryption Standard (3DES) encryption, ideal for applications in product authentication and consumable protection (i.e. anti-counterfeiting).
It’s outfitted with 4 General Purpose Input Output (GPIO) pins; other available interfaces include micro USB for direct connection to a USB host, Common Blade Interface, the software adjustable host interfaces UART (TTL), SPI and I2C, and the capability to attach an external antenna for greater read range.
With a form factor approximately the size of a match book, the Gemini is a powerful, cost-effective embedded RFID solution for OEMs requiring a simple and intuitive API and accelerated time-to-market.
Related Products
Overview
Features and Benefits
- Designed for rapid and seamless integration
- Open flexible architecture protects future investment
- Compact footprint form factor
- Common blade interface technology for maximum design & solution flexibility
- Simple, intuitive API
- ISO14443A air interface protocol support
- TagIQ™ recognizes the unique characteristics of each tag so that read/write performance is maximized
- Multiple interface options with software adjustable baud rates
Applications
- In-Vitro Diagnostics (IVD): Automatically ID test kits, samples, reagents, and other consumables
- Kiosks and vending machines
- Mobile devices including printers, handhelds and sensor networks
- Filter by Type
- Application Notes
- Firmware
- Product Brochure
- Software
- Spec Sheet
- User Manual
| Download | Download Type | Language |
|---|---|---|
| ThingMagic® Gemini Tag Support Matrix | Application Notes | English |
| ThingMagic Skyeware V4 Installer | Firmware | English |
| ThingMagic Universal Reader Assistant (URA) | Firmware | English |
| ThingMagic Gemini Firmware Release | Firmware | English |
| SkyeWare Protocol v3 | Firmware | English |
| ThingMagic Gemini Firmware Release Notes | Firmware | English |
| JADAK ThingMagic Family Brochure | Product Brochure | English |
| ThingMagic Skyetek C API for Windows | Software | English |
| ThingMagic Skyetek C API for Linux | Software | English |
| ThingMagic® Gemini HF RFID Module Spec Sheet | Spec Sheet | English |
| ThingMagic® Gemini HF Embedded RFID Module User Guide | User Manual | English |
