Z-focus stages are precision motion systems engineered for accurate and repeatable vertical positioning in advanced optical, imaging, and inspection applications. Designed to maintain consistent focus with nanometer-level precision, they support both high-speed scanning and precise step-and-settle motion for applications where image clarity, measurement accuracy, and dynamic response are critical.
- Precision Z-axis positioning for focus control and vertical alignment
- Supports rapid scanning and precise step-and-settle motion profiles
- Available in piezo, linear motor, and screw-driven configurations
- Piezo-driven systems provide ultra-fast response and nanometer-scale resolution
- Linear motor stages deliver smooth, high-speed motion with long travel capability
- Screw-driven designs support higher loads and extended travel ranges
- High stiffness and low vibration for stable imaging and measurement performance
- Closed-loop feedback options ensure excellent accuracy, repeatability, and minimal drift
- Compact, integration-friendly designs for microscopes, optical systems, and automation platforms
- Ideal for microscopy, semiconductor inspection, laser processing, photonics alignment, and precision metrology applications
Explore Our Featured Technology
Z-Focus Stage Solutions

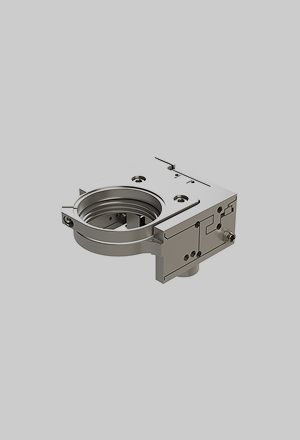

Z-Focus Piezo
Z-focus stages deliver ultra-fast, sub-micron precision vertical positioning for demanding optical focusing and imaging applications.

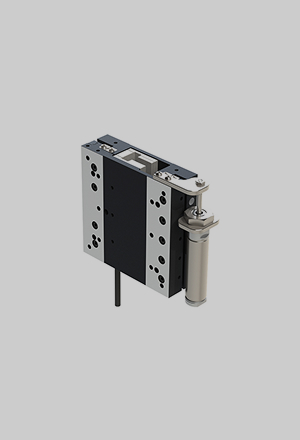

Z-Focus Linear Motor
Linear motor Z-focus stages provide high-speed, high-acceleration vertical positioning with precise, smooth motion for demanding optical scanning and focusing applications.
Z-Focus Screw Driven
Screw-driven Z-focus stages offer cost-effective, reliable vertical positioning with fine-pitch lead screw actuation suited for applications that prioritize stability and moderate precision over ultra-high speed.
Z-Focus Piezo Quick Compare
nPFocus100
nPFocus1000
nPFocus250
nPFocus400
Travel range
100 µm
1000 µm
250 µm
400 µm
Max force (push/pull)
50N / 10N
100N / 10N
50N / 10N
100N / 10N
Resonant frequency
160 Hz
60 Hz
155 Hz
120 Hz
Settling time
14 ms
35 ms
15 ms
20 ms
Position Noise
3 nm
15 nm
5 nm
7 nm
Bi-directional Repeatability (Full Travel)
±0.02% F.S.
±25 nm
±0.02% F.S.
±0.02% F.S
Straightness & Flatness
<1 µm
±10 µm
<1 µm
<2 µm
Z-Focus Screw Driven and Linear Motor Quick Compare
nPS35
nPS70
nPL70Z (Linear Motor)
Stage Height
35 mm
70 mm
Vertical counterbalance options
Bearing Type
Cross-roller bearing
Cross-roller bearing
Cross-roller bearing
Screw Type
Precision ballscrew
Precision ballscrew
Direct-drive linear motor (no screw)
Max Travel
Up to 300 mm
Up to 500 mm
25 mm, 45 mm, 85 mm, 100 mm, 110 mm, 130 mm, 150 mm
Repeatability
±1 µm
±1 µm
High precision encoder feedback
Backlash
Minimal backlash
Minimal backlash
Zero backlash
Max Velocity
High speed capable
High speed capable
High-speed direct-drive motion
Motor Options
Servo or stepper
Servo or stepper
1M, 2M, 3M, 4M linear motor options
