LGS25 Stage

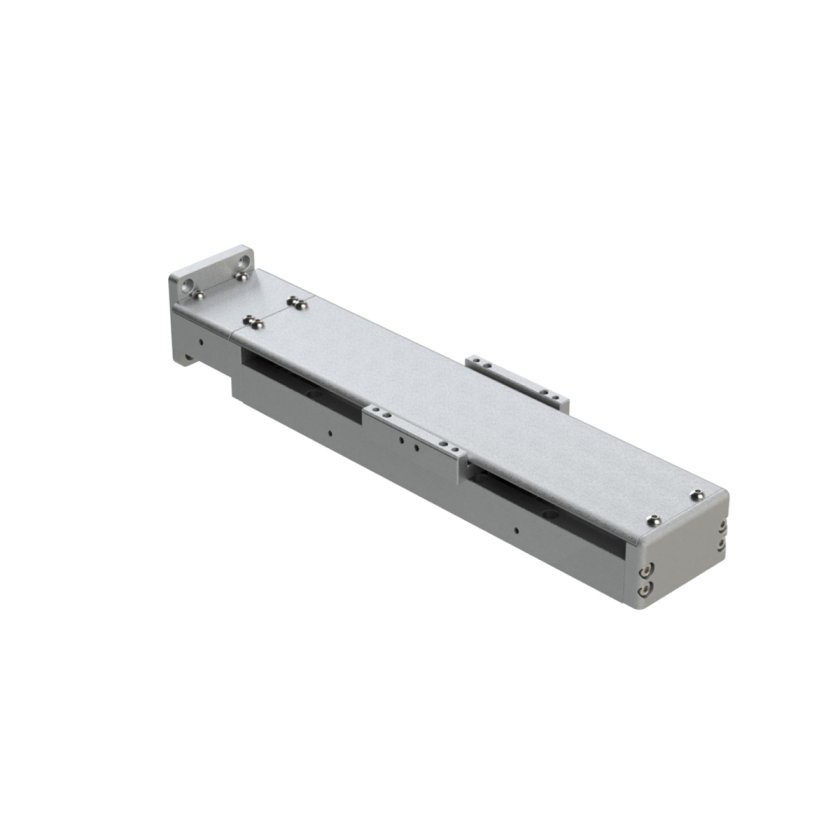

LGS25 Stage Linear Guide Stage, 25mm height

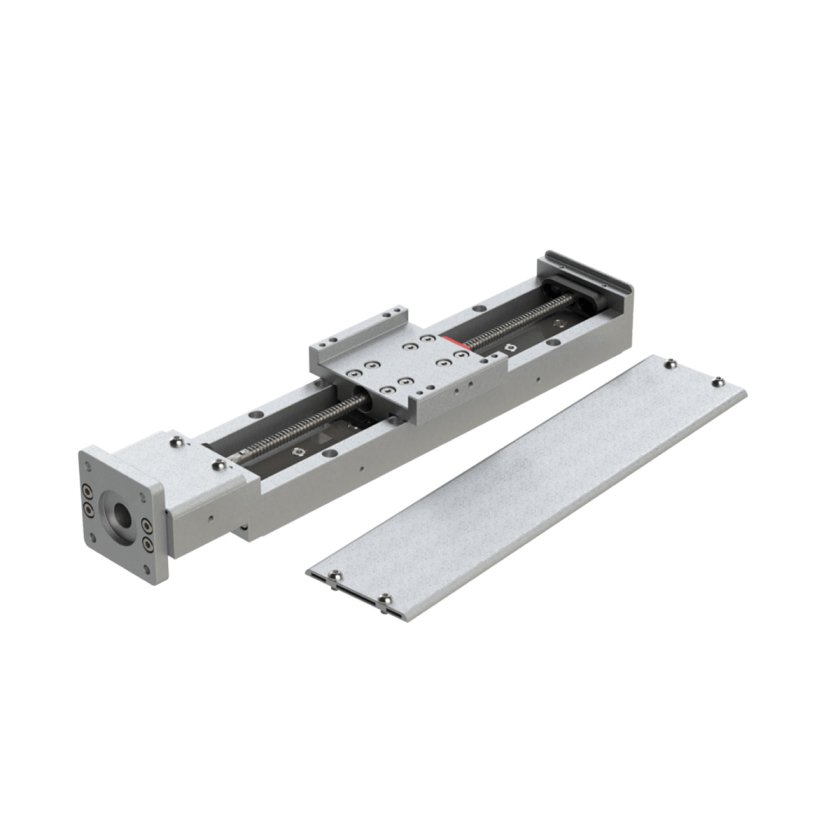

The LGS25 is a compact screw-driven linear stage with a 25 mm low-profile design for reliable, configurable positioning in space-constrained systems. Available in lead screw or ball screw configurations, it supports flexible customization with multiple lead pitches, motor mounts, and encoder options.
Built with rigid linear guides and a lightweight aluminum base, the LGS25 delivers smooth, repeatable motion for automation, inspection, and precision positioning applications.
Related Products
Key Features
Configurability
- Lead-screw and ball-screw versions
- Lead options
- Acme lead screws: 0.05-1 in
- Ball-screws: 2 mm, 3 mm, and 10 mm
- Available in lengths of up to 1 m
- Multiple motor flanges
- Linear encoder option
- Servo, stepper motor, and integrated motor drive control options
- Cover option for contamination protection
Functionality
- Anti-backlash lead-screw nut
- Proximity or photoelectric sensor built in
Usability
- Easy assembly, stackable without additional brackets
Quality
- Rigid linear bearings
- Lightweight precision aluminum base
- Clean-room prepped
Custom options
- Clean-room compatible
- Vacuum compatible
- Ingress protection
- The addition of mechanical elements such as brackets
Specifications
| LEAD IN (LEAD SCREW) [EX. 250I=0.250″] | |
|---|---|
| 050I | |
| 063I | |
| 250I |
A – Single long block
B – Double long blocks
C – Single short block
D – Double short blocks
| A-BLOCK | B-BLOCK | C-BLOCK | D-BLOCK |
|---|---|---|---|
| 120L(52) | N/A | 120L(79) | 120L(47) |
| 204L(136) | 204L(74) | 204L(163) | 204L(131) |
| 288L(220) | 288L(158) | 288L(247) | 288L(215) |
| 372L(304) | 372L(242) | 372L(331) | 372L(299) |
| 456L(388) | 456L(326) | 456L(415) | 456L(383) |
| 540L(472) | 540L(410) | 540L(499) | 540L(467) |
| 624L(556) | 624L(494) | 624L(583) | 624L(523) |
| 708L(640) | 708L(578) | 708L(667) | 708L(635) |
A = Anti-backlash lead screw nut
P = Plain lead screw nut
B0 = No motor flange
B1 = NEMA 17 mount
B2 = NEMA 14 mount
B3 = Wrap bracket for NEMA 14
R0 = Exposed bracket
1 = No cover
2 = With cover
0 = No sensors
2K = NPN proximitiy sensor kit (2 NC)
21 = NPN proximitiy sensor kit (2 NC, 1 NO)
2KP = PNP proximitiy sensor kit (2 NC)
21P = PNP proximitiy sensor kit (2 NC, 1 NO)
2H = NPN photo sensor kit (2 sensors)
3H = NPN photo sensor kit (3 sensors)
2HP = PNP photo sensor kit (2 sensors)
3HP = PNP photo sensor kit (3 sensors)
CS = Custom sensor configuration
Blank = nothing
Special lubrication
*Specify type of lubrication in description
Include motor
*Must specifiy motor p/n in description
Special machining
*Specify custom machining in description
*Consult motion solution for custom length
| BLOCK TYPE | STATIC RADIAL / REV RADIAL LOAD CAPACITY (kN) | STATIC LATERAL LOAD CAPACITY (kN) | *DYNAMIC LOAD CAPACITY (kN) | PITCH MOMENT (N-M) | ROLL MOMENT (N-M) | YAW MOMENT (N-M) | RUNNING PARALLELISM (mm) |
|---|---|---|---|---|---|---|---|
| A-BLOCK | 5.06 | 0.48 | 3.42 | 48 | 36 | 20 | 0.13/300 |
| B-BLOCK | 10.12 | 0.96 | 6.84 | 311 | 72 | 28 | |
| C-BLOCK | 2.53 | 0.48 | 1.71 | 7.5 | 18 | 6.5 | |
| D-BLOCK | 5.06 | 0.96 | 3.42 | 48 | 36 | 20 |
| PART NUMBER | DYNAMIC LOAD CAPACITY (kN) | STATIC LOAD CAPACITY (kN) |
|---|---|---|
| 694 | 0.96 | 0.35 |
Model: LGS25 LEAD SCREW, 1/4″ Screw Diameter
- Lead: 0.050″
- Dynamic load capacity [kN]: 0.11
- Static load capacity [kN]: 0.91
- Lead: 0.063″
- Dynamic load capacity [kN]: 0.11
- Static load capacity [kN]: 0.91
- Lead: 0.25″
- Dynamic load capacity [kN]: 0.11
- Static load capacity [kN]: 0.91
- Positioning repeatability (µm)
- Standard: 50
- Pre-Loaded: 10
- Positioning accuracy: 150µm /300mm
- Backlash [um]
- Standard: 200
- Pre-Loaded: 10
Model: LGS25 BALL SCREW, 5 Screw Diameter
- Lead: 2 mm
- Dynamic load capacity [kN]: 0.5
- Static load capacity [kN]: 0.8
- Lead: 3 mm
- Dynamic load capacity [kN]: 0.34
- Static load capacity [kN]: 0.49
- Positioning repeatability [µm]
- Standard: 50
- Pre-Loaded: 10
- Positioning accuracy: 52µm /300mm
- Backlash [um]
- Standard: 150
- Pre-Loaded: 10
Units: mm
| RAIL LENGTH | OVERALL LENGTH | NUMBER OF N HOLES | NUMBER OF D HOLES |
|---|---|---|---|
| 120 | 171 | 4 | 4 |
| 204 | 255 | 8 | 4 |
| 288 | 339 | 12 | 6 |
| 372 | 423 | 16 | 8 |
| 456 | 507 | 20 | 10 |
| 540 | 591 | 24 | 12 |
| 624 | 675 | 28 | 12 |
| 708 | 759 | 32 | 14 |
