Screw Driven Stages
Screw driven stages provide precise, controlled linear motion using lead screw or ball screw mechanisms, making them a reliable choice for a wide range of positioning applications. Known for their stability, load capacity, and cost-effectiveness, these stages are well-suited for applications requiring accurate step-and-settle motion, vertical positioning, or sustained holding without power.
Screw Driven Stages
Screw driven linear stages provide precise, stable, and repeatable linear motion for applications requiring high stiffness, controlled positioning, and reliable load handling.
- Uses lead screw or ball screw mechanisms for accurate linear motion control
- Delivers smooth motion with sub-micron positioning capability
- Supports a wide range of loads, travel lengths, and motion profiles
- Configurable with different screw types, motors, encoders, and environmental options
- Supports cleanroom and vacuum-compatible system designs
- High force capacity and long-term durability for demanding applications
- Cost-effective alternative to high-speed linear motor systems
- Ideal for life sciences, medical equipment, semiconductor, and industrial automation applications
Explore Our Screw Driven Stages

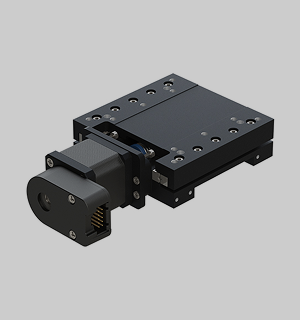

nPS35 Stage
The nPS35 is an ultra-compact precision stage designed for high stiffness and smooth, controlled motion in space-constrained applications. Featuring cross-roller bearings and available in lead screw or ball screw configurations, it supports both cost-sensitive, self-locking vertical setups and higher-speed applications, while integrating easily into multi-axis systems with piezo stages.

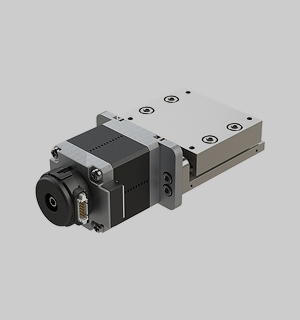

nPS70 Stage
The nPS70 is a compact precision stage built on a 70 mm platform, designed to deliver smooth, stable motion with high stiffness using cross-roller bearings. Available in both lead screw and ball screw configurations, it offers flexibility for either self-locking vertical applications or higher-speed, higher-efficiency motion, while enabling multi-axis integration for precision alignment and scanning tasks.

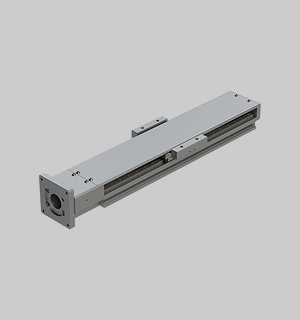

LGS25 Stage
The LGS25 is a compact linear guide stage designed for cost-effective, high-performance positioning in applications where simplicity and flexibility are key. Featuring a 25 mm profile, it offers configurable lead screw or ball screw options to balance speed, load capacity, and duty cycle requirements, while maintaining smooth motion and reliable operation.

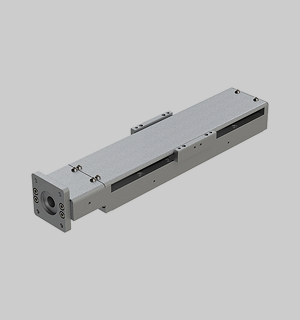

LGS33 Stage
The LGS33 is a versatile 33 mm linear guide stage designed for high-performance positioning with greater load capacity and flexibility than smaller form-factor stages. It offers configurable lead screw or ball screw options, supporting both high-speed, high-duty-cycle operation and more cost-sensitive applications, while maintaining reliable precision and repeatability.

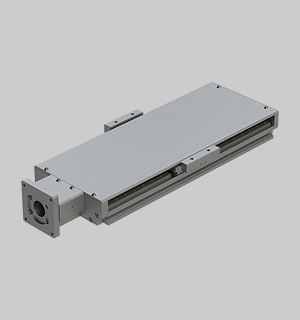

LGS33W Stage
The LGSW33 is a wide-body 33 mm linear guide stage designed for applications requiring increased stability and load support. With a wider rail spacing than the standard LGS33, it provides enhanced rigidity and improved moment load capacity, while maintaining configurable lead screw and ball screw options for flexible performance and precision positioning.

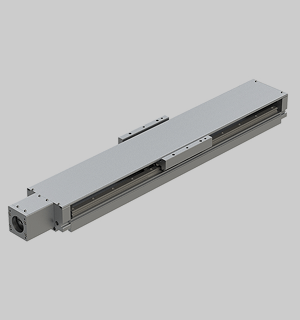

HSD75 Stage
The HDS75 is a rugged, heavy-duty linear stage engineered for high load and high-stiffness applications, capable of handling large masses and moment loads with reliable precision. Designed with a rigid aluminum base and high-load linear guides, it delivers stable, repeatable positioning while offering configurable lead screw and ball screw options for a wide range of performance requirements.
Screw Driven Stages Quick Compare
LGS25
LGS33
LGS33W
HDS75
nPS35
nPS70
Stage Height
25 mm
33 mm
33 mm (Wide)
75 mm
35 mm
70 mm
Bearing Type
Linear Guide
Linear Guide
Dual Linear Guide
Heavy-duty linear guide
Cross-roller bearing
Cross-roller bearing
Screw Type
Lead or Ballscrew
Lead or Ballscrew
Lead or Ballscrew
Lead or Ballscrew
Precision ballscrew
Precision ballscrew
Max Travel
up to 1 m
Up to 1 m
Up to 1 m
Long Travel Configurable
Up to 300 mm
Up to 500 mm
Repeatability
10–50 µm
10–50 µm
10–50 µm
Down to 10 µm
±1 µm
±1 µm
Backlash
Anti-backlash nut option
10–200 µm depending on preload
10–200 µm depending on preload
Low Backlash
Minimal backlash
Minimal backlash
Max Velocity
Configurable
Configurable
Configurable
High-duty-cycle capable
High speed capable
High speed capable
Motor Options
Servo, stepper, integrated
Servo, stepper, integrated
Servo, stepper, integrated
Servo/Stepper
Servo/Stepper
Servo/Stepper
Features of Screw Driven Stages
Compact Precision Stages
Linear Guide Options
Wide and Heavy-Duty
Versatile Portfolio
