LINEAR STAGE
nPL70M Stage

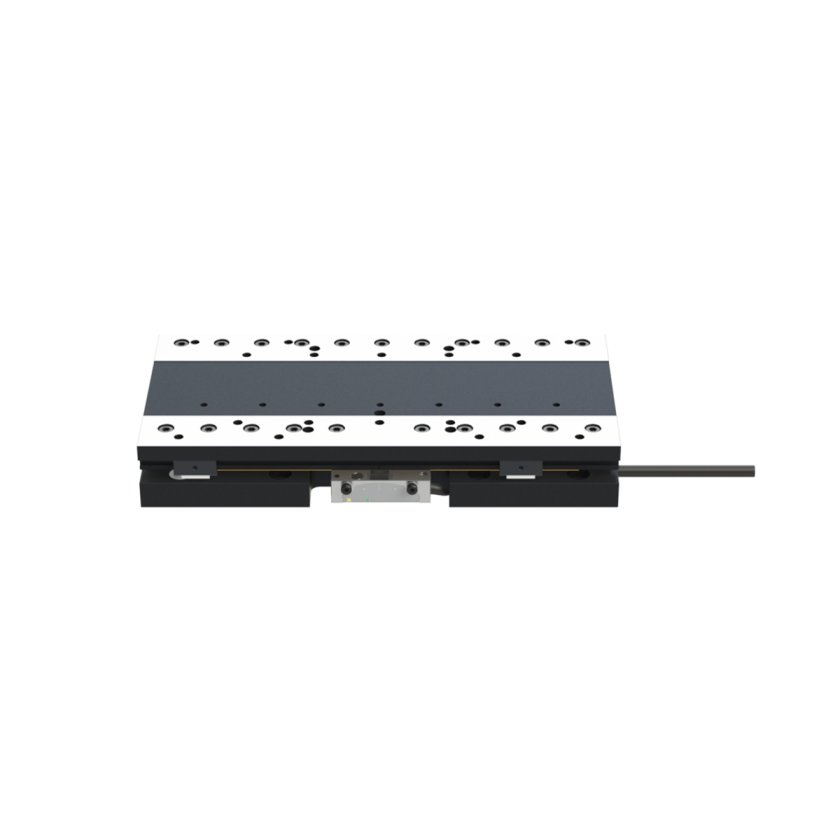

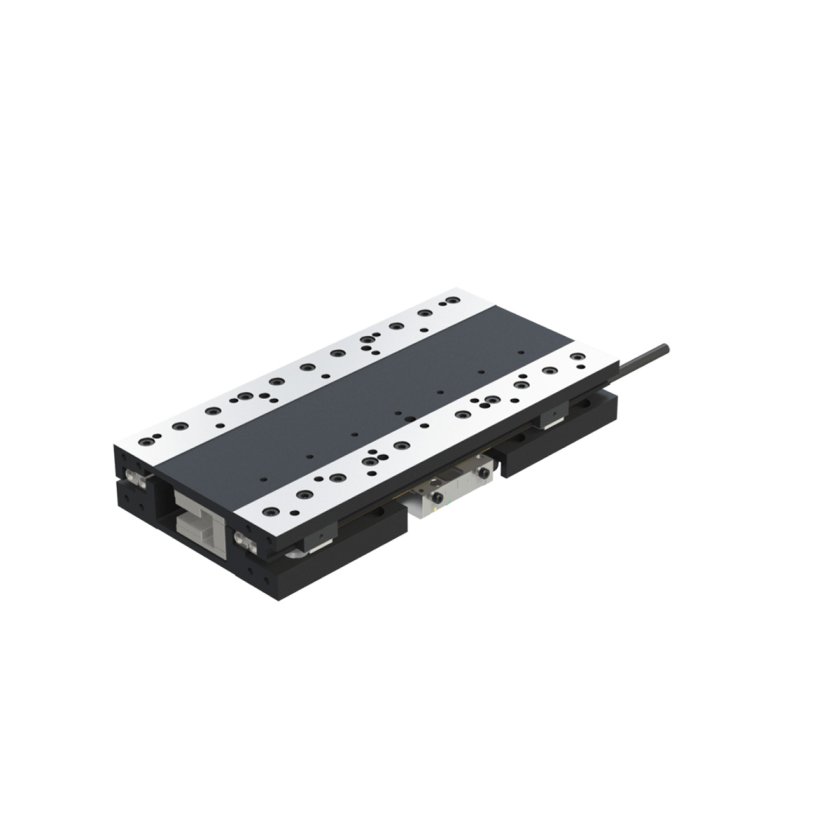

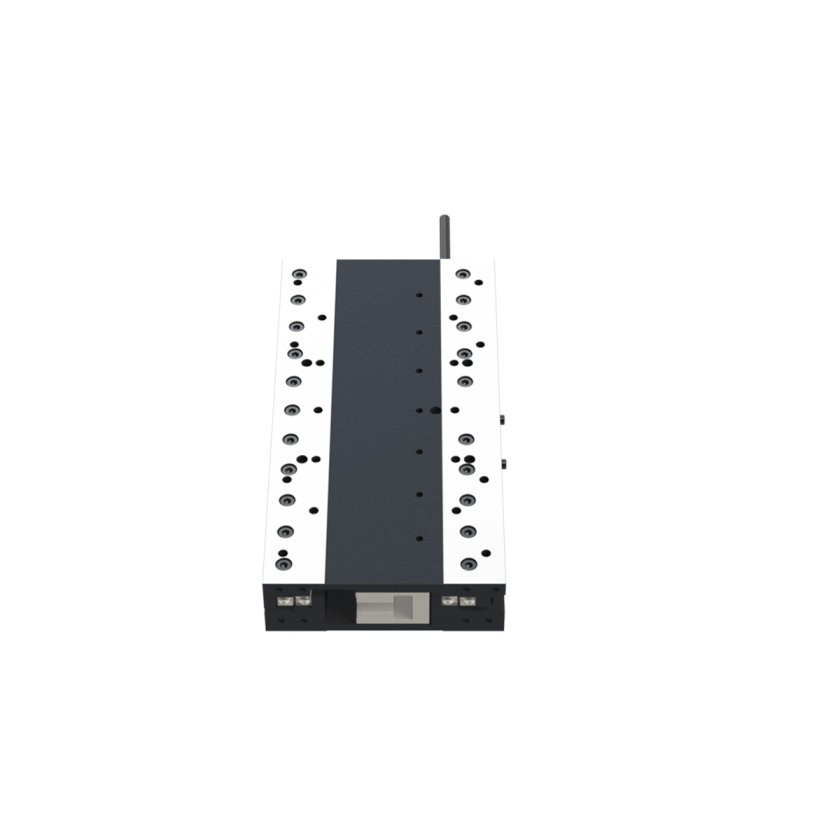

nPL70M Stage Linear Motor Stage
The nPL70M is a mid-sized direct-drive linear motor stage designed for high-speed, high-precision positioning with extended travel capability. Using ironless linear motor technology and precision cross-roller bearings, it delivers smooth, cog-free motion with rapid acceleration, fast settling, and excellent repeatability.
With configurable motor and encoder options plus a modular, stackable design, the nPL70M is ideal for precision alignment, high-speed scanning, and advanced automation applications.
Related Products
Key Features
The nPL70 stages feature a high-precision, compact design that enables seamless stacked configurations. These high-eciency stages are excellent for scanning applications that require fast acceleration and velocity control.
Multiple motor and resolution configurations, combined with a low 25mm profile, provide optimum motion control for precision scanning applications ranging from Semiconductor Fabrication to Life Sciences.
The ironless linear motor, coupled with unique windings, eliminates cogging while maintaining high force density and smooth motion. High precision anti-creep cross-roller bearings maximize stiness and minimize o-axis and angular errors.
Performance Specifications
| Attribute | nPL70M-1M | nPL70M-2M | nPL70M-3M | nPL70M-4M |
|---|---|---|---|---|
| Maximum Travel | 100 mm | 100 mm | 85 mm | 65 mm |
|
Encoder resolution |
0.01 µm 0.1 µm 1.0 µm |
0.01 µm 0.1 µm 1.0 µm |
0.01 µm 0.1 µm 1.0 µm |
0.01 µm 0.1 µm 1.0 µm |
|
Accuracy (Full Travel ISO 230) |
6 µm 8 µm 12 µm |
6 µm 8 µm 12 µm |
6 µm 8 µm 12 µm |
6 µm 8 µm 12 µm |
|
Bi-directional Repeatability (Full Travel) |
± 0.4 µm ± 0.5 µm ± 2.0 µm |
± 0.4 µm ± 0.5 µm ± 2.0 µm |
± 0.4 µm ± 0.5 µm ± 2.0 µm |
± 0.4 µm ± 0.5 µm ± 2.0 µm |
| Straightness & Flatness | 6 µm | 6 µm | 6 µm | 6 µm |
| Pitch & Yaw | 75 µrad | 75 µrad | 75 µrad | 75 µrad |
| Maximum Velocity (unloaded) | 1.34 m/s | 1.92 m/s | 2.23 m/s | 2.27 m/s |
| Normal Load Capacity | 10 Kg | 10 Kg | 10 Kg | 10 Kg |
| Peak Force | 11.9 N | 23.8 N | 35.7 N | 47.6 N |
| Continuous Force | 3.0 N | 6.0 N | 8.9 N | 11.9 N |
| Duty Cycle | 100% | 100% | 100% | 100% |
| Stage Material | Al | Al | Al | Al |
| Stage Mass | 1036 gr | 1061 gr | 1086 gr | 1111 gr |
| Moving Carriage Mass | 634 gr | 634 gr | 634 gr | 634 gr |
| Cable Length | 1 m | 1 m | 1 m | 1 m |
Motor Control Specifications
| Attribute | 1M | 2M | 3M | 4M |
|---|---|---|---|---|
| Motor Constant | 1.67, N/√W | 2.42, N/√W | 2.98, N/√W | 3.46, N/√W |
| Continuous Power | 3.20 W | 6.10 W | 9.0 W | 11.80 W |
| Peak Power | 50.90 W | 97.10 W | 143.30 W | 189.60 W |
| Electrical Cycle | 21.00 mm | 21.00 mm | 21.00 mm | 21.00 mm |
| Max Bus Voltage | 60.00 V | 60.00 V | 60.00 V | 60.00 V |
| Max Coil Temperature | 125.00 °C | 125.00 °C | 125.00 °C | 125.00 °C |
| Thermal Dissipation Constant | 0.04, W/°C | 0.08, W/°C | 0.12, W/°C | 0.16, W/°C |
| Continuous Current | 1.70 Arms | 1.70 Arms | 1.70 Arms | 1.70 Arms |
| Peak Current | 6.80 Arms | 6.80 Arms | 6.80 Arms | 6.80 Arms |
| Force Constant | 1.75 N/Arms | 3.50 N/Arms | 5.25 N/Arms | 7.00 N/Arms |
| Back EMF Constant | 1.40 Vpk/(m/s) | 2.90 Vpk/(m/s) | 4.30 Vpk/(m/s) | 5.70 Vpk/(m/s) |
| Inductance | 0.11 mH | 0.22 mH | 0.31 mH | 0.41 mH |
| Thermal Resistance @25 °C | 1.10 Ohms | 2.10 Ohms | 3.10 Ohms | 4.10 Ohms |
| Electrical Time Constant | 0.10 ms | 0.10 ms | 0.10 ms | 0.10 ms |
