2-Axis Piezo Stages
2-axis piezo stages deliver ultra-precise X–Y nanopositioning with nanometer-level resolution, combining piezoelectric actuation and flexure guidance for smooth, backlash-free motion. With fast response, high stability, and optional closed-loop feedback, they provide accurate, repeatable performance for demanding multi-axis positioning applications such as microscopy, semiconductor inspection, and optical alignment.
2-Axis Piezo Stages
Tip/tilt piezo stages provide ultra-precise angular positioning for beam steering, optical alignment, and dynamic stabilization applications.
- Controlled rotation about two orthogonal axes for pitch and roll adjustment
- Piezoelectric actuation with flexure-guided motion for frictionless, backlash-free performance
- Nanoradian-level resolution with high stiffness and exceptional repeatability
- Fast response and high bandwidth for real-time correction and stabilization
- Defined pivot point minimizes unwanted linear displacement during angular motion
- Ideal for laser beam steering, adaptive optics, interferometry, and high-resolution imaging systems
Explore Our 2-Axis Piezo Stages
2-Axis Piezo Stage Solutions

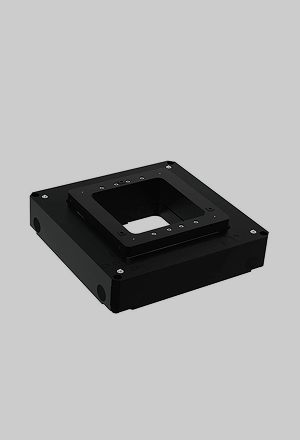

nPXY 100-100
Consists of high-precision piezo-driven XY stages designed for fast, synchronized two-axis nanopositioning with nanometer-level accuracy and exceptional stability.

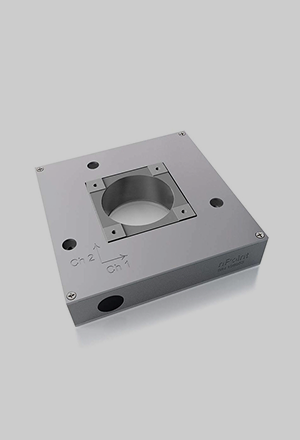

nPXY 100-126
Offers compact, high-performance piezo XY stages that deliver fast, ultra-precise two-axis motion with nanometer-level resolution and excellent repeatability.

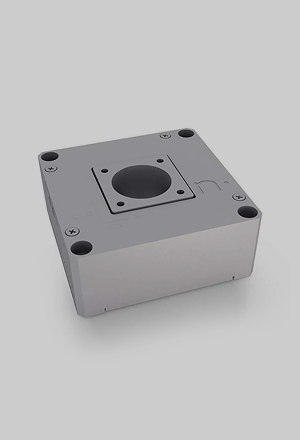

nPXY200-101
A compact piezo XY stage designed for high-speed, nanometer-precision positioning, offering excellent stability and repeatability for demanding multi-axis motion applications.

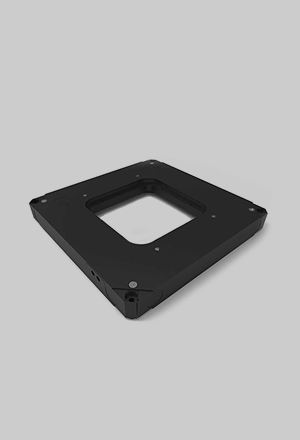

nPXY50-286
A high-precision piezo XY stage optimized for ultra-fine positioning, delivering fast response and nanometer-level accuracy in a compact, stable platform.
2-Axis Piezo Quick Compare
nPXY200-101
nPXY50-286
nPXY100-126
nPXY100-100
Open-loop Travel
290 µm
70 µm
—
—
Closed-loop Travel
200 µm
50 µm
100–300 µm
100 µm
Integrated Sensor
Capacitive
Capacitive
Capacitive
Closed-loop capable
Position Noise
0.5 nm
0.2 nm
Sub-nm
Sub-nm
Linearity deviation
0.01%
0.01%
—
—
Max Load
1 kg
1 kg
—
—
Push/Pull Force
100N / 20N
100N / 20N
—
—
Stiffness
0.5 N/µm
8.0 N/µm
—
—
Resonant Frequency
400 Hz
1400 Hz
High dynamic response
High dynamic response
Settling time
15 ms
4 ms
Fast response
Fast response
Speak to an Engineer
Explore how Piezo Stages can streamline your workflows. Novanta has the right technology and Engineering team for your solution.
Explore Our Featured Applications
2-Axis Piezo Solutions
Surgical Imaging
Surgical imaging uses advanced visualization technologies to provide real-time, high-resolution views during medical procedures, enhancing precision, guidance, and patient outcomes.
Microscopy
Microscopy involves the use of specialized instruments to visualize and analyze structures at micro- and nanoscale resolutions beyond the limits of the human eye.
Features of 2-Axis Piezo Stages
Nanometer XY Precision
Fast, High Bandwidth
Stable Flexure Guidance
Scanning and Alignment
