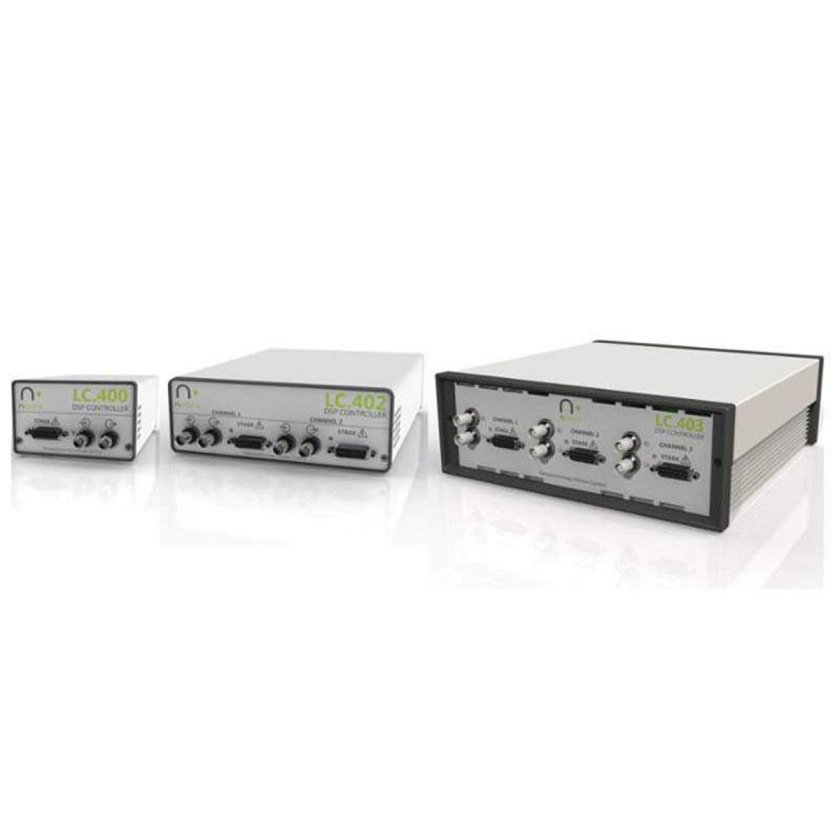

LC.400 Series Piezo Controller Enclosed
LC.400 Series Piezo Controller Enclosed
The LC.400 series is a DSP-based digital nanopositioning controller providing ultra-low-noise closed-loop control in compact one-, two-, or three-channel configurations. Compatible with capacitive and strain gauge sensors, it supports command inputs via analog BNC, USB, Ethernet, and high-speed parallel interfaces.
Advanced linearization delivers better than 99.97% positioning linearity, while integrated stage calibration data and high-power amplifiers enable precise, high-speed operation for demanding nanopositioning applications.
Related Products
Key Features
- Precision piezo controllers and amplifiers for accurate motion control
- Closed-loop control capability for improved positioning accuracy and stability
- High bandwidth and fast response for dynamic nanopositioning applications
- Low noise electronics to support sub-nanometer resolution performance
- Multi-axis control support for complex motion systems
- Digital and analog interface options for flexible system integration
- Compact, integration-friendly design for OEM and embedded applications
- Optimized drive signals to reduce hysteresis and improve linearity
- Compatible with capacitive and strain gauge sensors for feedback control
- Designed for microscopy, photonics, semiconductor, and precision automation systems
Specifications
| Attribute | Value |
|---|---|
| Channels | LC.400 (1‑Channel): 200761, LC.402 (2‑Channel): 200704, and LC.403 (3‑Channel): 200730 |
| Resolution | 20-bit |
| Processor | 32-bit floating point DSP |
| Sampling Rate | 24 µsec servo-loop |
| Interfaces | USB, analog input (–10 V to +10 V), analog sensor output (–10 V to +10 V), TTL digital trigger I/O, optional Ethernet interface, optional PFM (step/dir + AquadB) interface, optional AquadB external encoder interface, optional high‑speed parallel interface, and optional RS‑232. |
| Software | nPoint control panel, internal waveform generator, μManager drivers, and ScanImage compatible. |
| HV Driver Voltage | -30V to 150V piezo drive |
| Command Input Voltage | BNC -10V to 10V analog position command signal, 0V to 10V optional |
| Sensor Monitor Output | BNC -10V to 10V analog sensor signal, 0V to 10V optional |
| Sensor Type | Capacitive or Strain Gage, others optional |
| Max Output Current | LC.400: 100 mA standard (150 mA optional), LC.402: 100 mA standard (up to 350 mA optional), and LC.403: 100 mA standard (up to 350 mA optional). |
| Dimensions | LC.400: 106 × 67 × 172 mm, LC.402: 185 × 67 × 240 mm, and LC.403: 260 × 88 × 264 mm |
| Cables | 2m long cables to the nanopositioner (custom length cables are available) |
| Operating Voltage | 12-24 VDC |
| Operating System | Microsoft Windows 7/8/10/11, Linux, Mac OS |
| Certification | CE, UL, CAN/CSA |
