sERVO DRIVES
Denali
The smallest servo drive to date with industry leading performance.
Denali is not only the smallest, but also the most versatile drive in the Summit range.
Born to be a legend
The Denali Servo Drive represents the peak achievement of our advanced engineering team, ambition meets relentless innovation. By bending the limits of what’s possible today, we’ve created a servo drive that delivers superior power density in the most compact footprint on the market. Every detail reflects our commitment to innovation, precision, and performance, making Denali not just a product, but a breakthrough in motion control technology.
A revolution defying motion control standards, Denali was born to rewrite the rules, born to be a legend.
Motion control at your fingertips

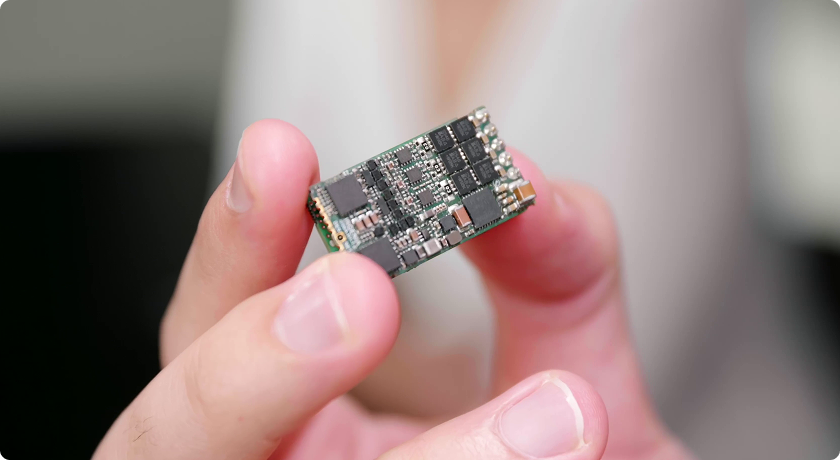

Denali redefines what “small” means in motion control. Engineered to deliver exceptional power in a footprint that seems almost impossible, it fits where others simply can’t. This isn’t just miniaturization—it’s precision engineering at its finest, proving that true innovation isn’t about making things smaller, but making them smarter, stronger, and more efficient in every millimeter.
Overview
Features & Benefits
- Smallest form factor
- 5 A continuous / 10 A peak
- Up to 200 kHZ PWM frequency
- Up to 99% efficiency
- Standby power consumption down to 1 W
- EtherCAT embedded communications
- STO inputs are integrated, rated to SIL-3 PLe
Specifications

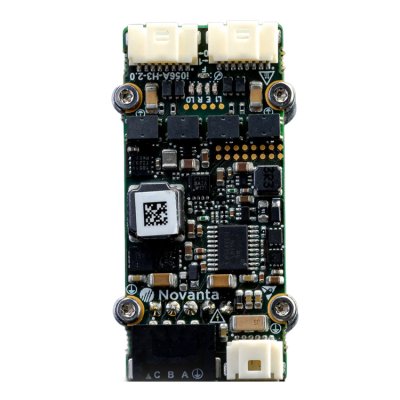

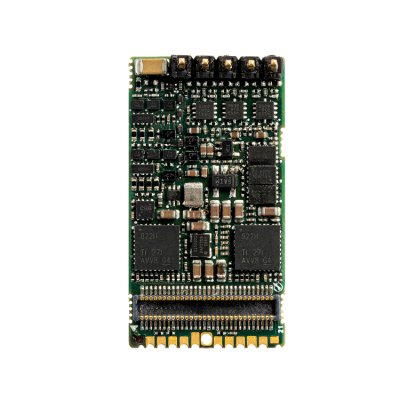

| Specification | Denali NET | Denali XCR |
|---|---|---|
| Part number | DEN-NET | DEN-XCR |
| Rated/Peak current | 5 A (10 A peak) | 5 A (10 A peak) |
| Voltage | 48 VDC | 48 VDC |
| Size | 33 x 17.6 x 6 mm | 49.8 x 23.2 x 14 mm |
| Efficiency | Up to 99% | Up to 99% |
| Minimum Standby Power Consumption | 1.3 W (ECAT) / 1.15 W (CANopen) | 2.5 W (ECAT) / 2.1 W (CANopen) |
| Communications | EtherCAT / CANopen | EtherCAT / CANopen |
| Safety | STO (SIL3 Ple) | STO (SIL3 Ple) |
