Linear Motor Stages
Compact, high-performance linear motor stages designed for precision motion in space-constrained environments. Built on a common 70 mm platform, the series offers scalable travel ranges and motor configurations, enabling flexible integration across a wide range of high-accuracy positioning and scanning applications.
The nPL70 Series Linear Motor Stages
The nPL70 series is a compact, high-performance direct-drive linear motor stage family designed for precision positioning applications requiring exceptional dynamic response, smooth motion, and compact integration.
- Ironless linear motor technology for smooth, cog-free, backlash-free motion
- Sub-micron repeatability with high acceleration and rapid settling times
- Precision cross-roller bearings for high stiffness and minimal motion error
- Configurable travel lengths, motor force options, and analog or digital encoders
- Supports travel ranges up to 150 mm and payloads up to 10 kg
- Slim 25 mm low-profile design for space-constrained systems
- Stackable architecture for multi-axis integration
- Integrated limit and home sensors for simplified system setup
- Supports both horizontal and vertical orientations
- Ideal for semiconductor inspection, photonics, microscopy, metrology, and advanced automation systems
Explore Our Linear Motor Stages

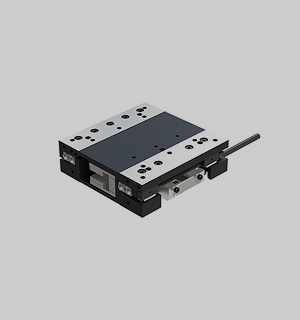

nPL70S Stage
The most compact stage in the family, optimized for space-constrained applications and shorter travel ranges, with fewer motor options but high speed capability in a minimal footprint.
nPL70M Stage
A mid-size stage that balances travel range and performance, offering greater flexibility and longer motion than the S model while maintaining a compact profile.

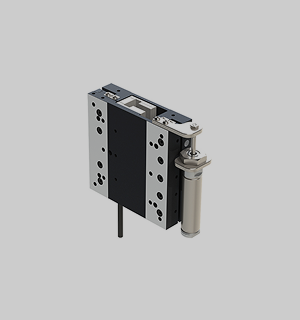

nPL70Z Stage
A vertically optimized variant with integrated counterbalance options, specifically designed to maintain stability and performance in Z-axis applications where gravity effects must be managed.

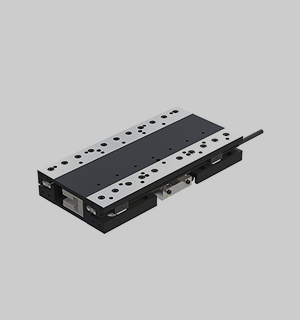

nPL70L Stage
The largest stage, designed for applications requiring extended travel and maximum flexibility, supporting all motor options for higher force and broader performance tuning.
Linear Motor Stages Quick Compare
nPL70Z
nPL70S
nPL70M
nPL70L
Travel Range
25 / 45 mm
25 / 45 mm
85 / 100 mm
110 / 130 / 150 mm
Straightness & Flatness
4 µm
4 µm
6 µm
8 µm
Pitch & Yaw
50 µrad
50 µrad
75 µrad
120 µrad
Normal Load Capacity
10 kg
10 kg
10 kg
10 kg
Bi-directional Repeatability
±0.4 / ±0.5 / ±2.0 µm
±0.4 / ±0.5 / ±2.0 µm
±0.4 / ±0.5 / ±2.0 µm
±0.4 / ±0.5 / ±2.0 µm
Maximum Velocity
1.30 / 1.37 m/s
1.30 / 1.37 m/s
1.34 / 1.92 / 2.23 / 2.27 m/s
1.45 / 2.09 / 2.40 / 2.55 m/s
Peak Force
11.9 / 23.8 N
11.9 / 23.8 N
35.7 / 47.6 N
35.7 / 47.6 N
